Tektronix TLA7AC3 Logic Analyzers
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
| Service & Purchase | Price |
|---|
Description

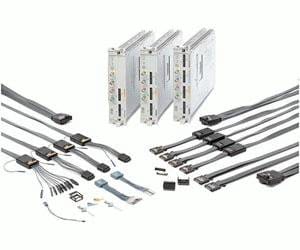

Tektronix TLA7AC3 Logic Analyzers are high-performance instruments designed for complex digital circuit analysis. These logic analyzers provide engineers and technicians with the ability to capture and analyze multiple channels of digital signals simultaneously, enabling them to identify and troubleshoot intricate timing and logic problems. With a maximum of 136 digital channels and a sampling rate of up to 450 MHz, the TLA7AC3 Logic Analyzers offer exceptional performance and flexibility. These instruments also come equipped with advanced triggering and display capabilities, allowing users to efficiently identify and isolate specific events or patterns of interest. Additionally, Tektronix’s intuitive user interface and comprehensive software tools make it easy for users to navigate through large amounts of data and quickly extract valuable insights. Overall, the Tektronix TLA7AC3 Logic Analyzers are reliable and powerful tools that enable engineers to efficiently analyze and debug complex digital circuits.
Specifications
– Model: Tektronix TLA7AC3
– Type: Logic Analyzer
– Channels: 136
– Maximum Input Frequency: 2.5 GHz
– Maximum State Speed: 450 MHz
– Maximum Timing Speed: 2.5 GHz
– Input Levels: TTL, CMOS, ECL, PECL, LVDS, LVPECL, CML, SSTL
– Input Voltage Range: -3.0 V to 7.0 V
– Memory Depth: Up to 64 Mb per channel
– Triggering: Edge, Glitch, State, Bus, Pattern, Sequence, Setup and Hold, Transition, Data, Time, Logic Combination
– Trigger Sequencer: 16 levels, 8 conditions
– Pattern Qualifier: 16-bit, 256-level depth
– Data Qualifier: 16-bit, 256-level depth
– Display: 15-inch color LCD
– Connectivity: USB, Ethernet, GPIB
– Software: Tektronix TLA Application Software
– Dimensions: 425 mm x 210 mm x 425 mm
– Weight: 9.5 kg
TEKTRONIX TLA7AC3 is also available with the following specs and model:
- Logic Analyzer – Module – 102ch – 8GHz timing 235MHz state 2Mb record length
