Shop Metrel Multimeters


Metrel offers a wide range of different multimeter models, all suitable for virtually any general purpose or hobby work, while some more advanced models support measurements with expanded measuring ranges (in comparison with basic models) or functionalities not commonly found in multimeters. The latter includes earth continuity and insulation resistance measurements.

Features

  • Continuity and insulation testing in accordance with IEC 61557.
  • Calculation of PI and DAR factors.
  • Frequency filters.
  • Non-contact electric field detection.
  • Compensation of test leads.
  • Data hold and MIN/MAX/AVG recording.
  • Communication with a PC.
  • Measurement of conductance.
  • Measurement of duty cycle.
  • TRMS measurements.
  • Large 500,000 counts display.
  • Voltage measuring range: 0,003 V – 1000 V (AC and DC).
  • Accuracy of voltage measurements: 0,02 %.
  • Current measuring range: 0,00025 A – 10 A, 20 A for 30 s, (AC and DC).
  • Accuracy of current measurements: 0,15 %.
  • Resistance measurements in the 1 Ω to 50 MΩ range.
  • Diode testing.
  • Capacitance measurement.
  • Frequency measurement.
  • Temperature measurements up to 1000 °C.

Applications

  • Generator safety.
  • Earth continuity and insulation testing.
  • Voltage measurements.
  • Current measurements.
  • Frequency measurements.
  • Appliances troubleshooting.
  • Installation troubleshooting.
  • Field service.
  • Electronics.
  • HVAC.
  • Home maintenance.
  • Industrial testing.
  • Hobby work.
md9070

Metrel MD 9070 Digital Multimeter

The MD 9070 is a high accuracy insulation and continuity multimeter which may be used in a CAT IV / 600 V environment. It's dual digital display provides all needed data to the operator while it's size ensures that it can be operated single handedly. The instrument is equipped with a built-in VFD feature that makes the instrument capable of measuring true RMS values in accordance with frequency, performing PI/DAR measurements and diode test. The MD 9070 has a wide range of extra features, including data hold, memory, min / max, differential, auto power off, auto-ranging, frequency filter, lock feature, reset, relative function and more.

Buy Now

Measuring Functions


  • TRMS measurement;
  • Insulation resistance measurement;
  • Earth continuity measurement;
  • Resistance measurement;
  • Diode test;
  • Mains supply frequency measurement;
  • Frequency of digital signals measurement.

Key Features


  • TRMS: accurate readings on sinusoidal and non-sinusoidal signals.
  • VFD: feature makes the instrument capable of measuring the true values in accordance with frequency.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • MAX/MIN: recording of maximum, minimum and average values.
  • Data Hold: data hold feature freezes the display for later view.
  • PI/DAR: feature.
  • Safety: CAT IV / 600 V and CAT III / 1000 V overvoltage protection.
  • Backlight: working in dark conditions.

Measuring Functions


  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Mains supply frequency measurement;
  • Frequency of digital signals measurement;
  • Continuity test (acoustic signalling);
  • Conductance measurement;
  • Temperature measurement.

Key Features


  • TRMS: accurate readings on sinusoidal and non-sinusoidal signals.
  • VFD: feature makes the instrument capable of measuring the true values in accordance with frequency.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Temperature measurement: measures T1, T2 and T1 + T2 temperature in Celsius and in Fahrenheit.
  • Lead alert: incorrect lead connection alert.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • MAX/MIN/AVG: recording of maximum, minimum and average values.
  • Data Hold: data hold feature freezes the display for later view.
  • Peak Hold: Crest (instantaneous peak) capture mode.
  • PC Link: test results can be downloaded to the computer via the optional PC software.
  • Safety: CAT IV / 1000 V overvoltage protection.
  • Backlight: large bright 4 digits 500.000 counts dual LCD display with backlight for working in dark conditions.
md9060 1

Metrel MD 9060 Digital Multimeter

The MD 9060 ranks among the most accurate multimeters with a large bandwidth and very high resolution. Metrel MD 9060 is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency, large 2-line 500.000 counts LCD display, fast data acquisition and transfer (via optical interface), CAT IV / 1000 V, TRMS current and voltage measurement,  conductance measurement and fast one-handed operation.  MD 9060 has a wide range of extra features, including data hold, memory, min / max, average, differential, peak, peak / peak with extra fast 1ms response time, auto power off, frequency filter, reset and relative function. The MD 9060 is the ideal choice for demanding measurement tasks in industry, in the laboratories and in everyday repair and maintenance practice.

Buy Now

Metrel MD 9050 Digital Multimeter

Metrel MD 9050 Digital Multimeter

The MD 9050 ranks among the best multimeters on the market. High resolution and accuracy, 2-line LCD display, fast data acquisition and transfer (via optical interface), CAT IV / 1000 V, TRMS current and voltage measurement, non-contact voltage detection, conductance measurement, auto check function and fast one-handed operation are highlights of the multimeter. The MD 9050 is the ideal choice for demanding measurement tasks in industry, in the laboratories and in everyday repair and maintenance practice.

Buy Now

Measuring Functions


  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Mains supply frequency measurement;
  • Frequency of digital signals measurement;
  • Continuity test (acoustic signalling);
  • Conductance measurement;
  • Electric field detection;
  • Temperature measurement.

Key Features


  • TRMS: accurate readings on sinusoidal and non-sinusoidal signals.
  • Autocheck function: automatic detection of AC voltage, DC voltage or resistance.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Temperature measurement: measures T1, T2 and T1 + T2 temperature in Celsius and in Fahrenheit.
  • EF detection: non-contact and probe-contact electric field detection.
  • Lead alert: incorrect lead connection alert.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • MAX/MIN/AVG: recording of maximum, minimum and average values.
  • Data Hold: data hold feature freezes the display for later view.
  • Peak Hold: Crest (instantaneous peak) cupture mode.
  • PC Link: test results can be downloaded to the computer via the optional PC software.
  • Safety: CAT IV / 1000 V overvoltage protection.
  • Backlight: large bright 4 digits 9999 counts dual LCD display with backlight for working in dark conditions.

Measuring Functions


  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Mains supply frequency measurement;
  • Frequency of digital signals measurement;
  • Continuity test (acoustic signalling).

Key Features


  • TRMS: accurate readings on sinusoidal and non-sinusoidal signals.
  • Lead alert: incorrect lead connection alert.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • Data Hold: data hold feature freezes the display for later view.
  • PC Link: test results can be downloaded to the computer via the optional PC software.
  • Frequency measurement: up to 1 MHz.
  • Safety: CAT IV / 1000 V overvoltage protection.
  • Easy to read: large bright 4 digits 9999 counts dual LCD display.
Metrel MD 9040 Digital Multimeter

Metrel MD 9040 Digital Multimeter

CAT IV / 1000 V overvoltage category and TRMS measurement of AC current and voltage are key features of the MD 9040. That’s why it is particularly suitable for performing measurements on power supply sources in the most demanding applications in the industrial sector. Its high accuracy, 2-line LCD display, diverse measurement functions, fast one-handed operation and outstanding value for money open up a wide range of possible uses.

Buy Now

Metrel MD 9030 Digital Multimeter

Metrel MD 9030 Digital Multimeter

The MD 9030 TRMS digital multimeter has been designed for use both in the laboratories and in the harsh industrial maintenance and repair sector. TRMS functionality makes the multimeter suitable for a multitude of situations, while the large bright screen with backlight and incorrect lead connection alert make it ideal for working in dark areas.

Buy Now

Measuring Functions


  • TRMS AC, DC voltage measurement;
  • TRMS AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diod test;
  • Frequency measurement;
  • Continuity test (acoustic signalling);
  • Temperature measurement.

Key Features


  • TRMS: accurate readings on sinusoidal and non-sinusoidal signals.
  • Temperature measurement: measures temperature in Celsius up to 300 °C and in Fahrenheit up to 572 °F.
  • Frequency measurement: up to 1 MHz.
  • Lead alert: incorrect lead connection alert.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • Data Hold: data hold feature freezes the display for later view.
  • MAX Hold: MAX hold feature freezes the maximum measured value.
  • Safe: CAT IV / 300 V, CAT III / 600 V and CAT II / 1000 V overvoltage protection.
  • Backlight: large bright 3-3/4 digits, 4000 counts LCD display with backlight for working in dark conditions.

Measuring Functions


  • AC, DC voltage measurement;
  • AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diod test;
  • Frequency measurement;
  • Continuity test (acoustic signalling);
  • Temperature measurement.

Key Features


  • Temperature measurement: measures temperature in Celsius up to 300 °C and in Fahrenheit up to 572 °F.
  • Frequency measurement: up to 1 MHz.
  • Lead alert: incorrect lead connection alert.
  • Auto-ranging: user can switch between auto and manual ranging.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • Data Hold: data hold feature freezes the display for later view.
  • MAX Hold: MAX hold feature freezes the maximum measured value.
  • Safe: CAT IV / 300 V, CAT III / 600 V and CAT II / 1000 V overvoltage protection.
Metrel MD 9020 Digital Multimeter

Metrel MD 9020 Digital Multimeter

The MD 9020 is a high-quality digital multimeter, designed for everyday use in the laboratory and for maintenance and repair work in the field and in the industrial sector as well.

Buy Now

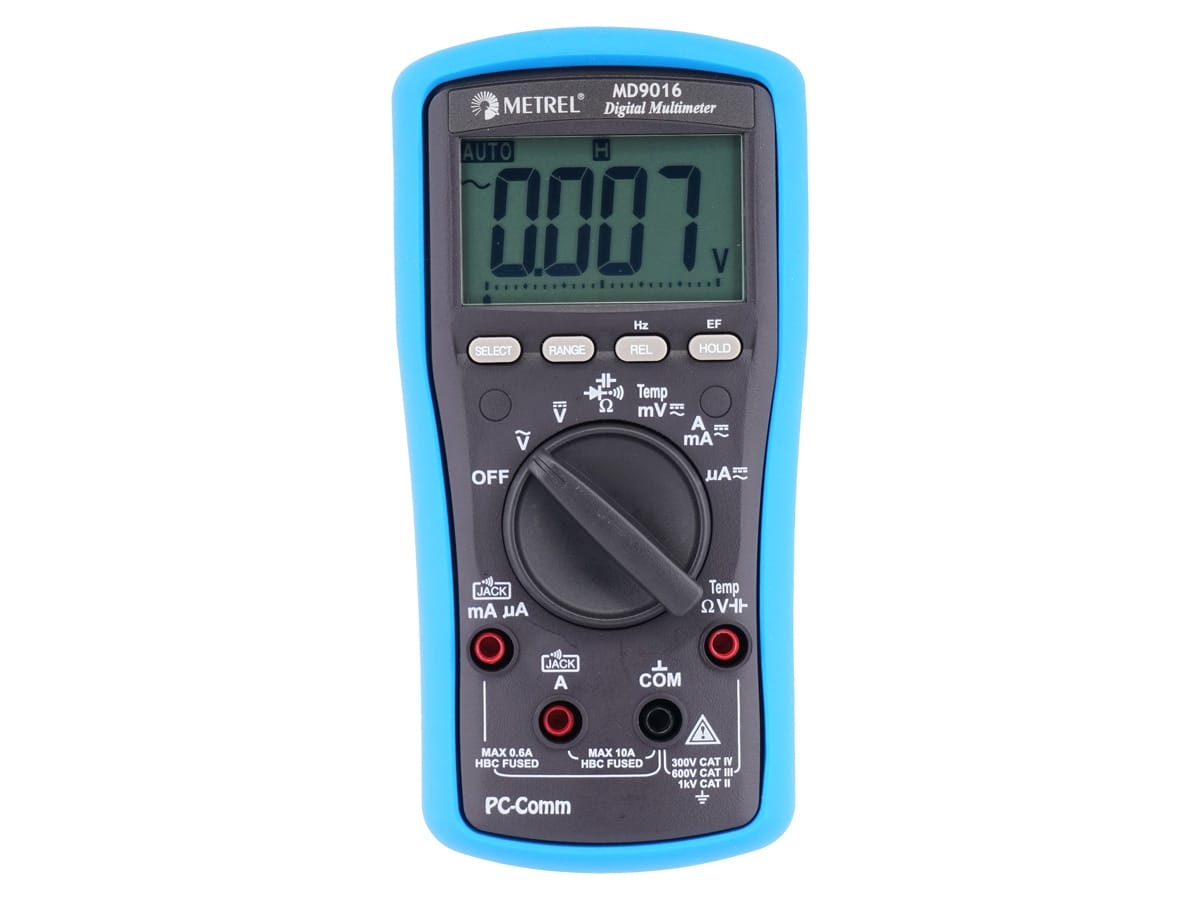

Metrel MD 9016 Digital Multimeter

Metrel MD 9016 Digital Multimeter

The digital multimeter MD 9016 is a perfect combination of size, Innovative functions and built-in PC communication. It is capable to detect and diagnose most electrical and electrotechnical problems. Display with large easy-to-read figures and one-handed operation make MD 9016 an extremely easy-to-use. This compact instrument combines a high level of functionality and small size and portability.

Buy Now

Measuring Functions


  • AC, DC voltage measurement;
  • AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Frequency measurement;
  • Continuity test (acoustic signalling);
  • Electric field detection;
  • Temperature measurement.

Key Features


  • Auto-ranging: user can switch between auto and manual ranging.
  • EF detection: non-contact and probe contact electric field detection.
  • Relative zero mode: relative function for comparing the difference between signals or removing background noise.
  • Hold: data hold function freezes the display for later view.
  • PC Link: test results can be downloaded to the computer via the optional PC software.
  • Safe: CAT II / 1000 V, CAT III / 600 V and CAT IV / 300 V overvoltage protection.

Measuring Functions


  • AC, DC voltage measurement;
  • AC, DC current measurement;
  • Capacitance measurement;
  • Resistance measurement;
  • Diode test;
  • Frequency measurement;
  • Continuity test;
  • Electric field detection.

Key Features


  • Autocheck function: automatic detection of AC voltage, DC voltage or resistance.
  • Auto-ranging: no need of manual ranging.
  • Pocket-sized: small, thin, ergonomic design.
  • Lightweight: 78 g only.
  • Acoustic signalling on continuity test.
  • EF detection: non-contact and probe-contact electric field detection.
  • Safe: protected against wrong connection and overvoltage (CAT III / 300 V and CAT II / 600 V).
  • Easy to read: LCD display, 3-5/6 digits, 6000 counts.

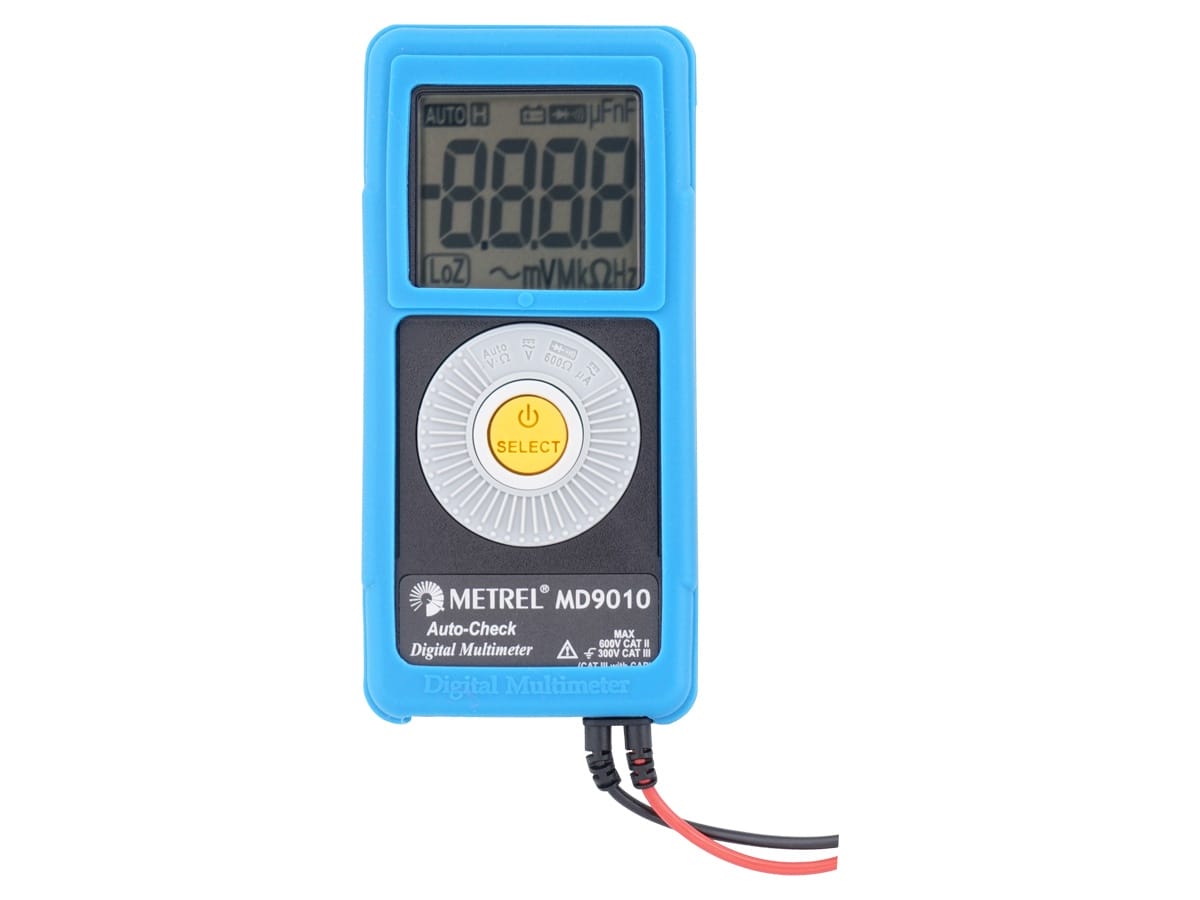

Metrel MD 9010 Digital Multimeter

Metrel MD 9010 Digital Multimeter

The MD 9010 is one of the smallest and lightest of our digital multimeters. The MD 9010 unit can be used for a wide variety of applications. The high accuracy, LCD display and features including non-contact voltage detection and an autocheck function make the multimeter extremely versatile and great value for money.

Buy Now

Features

  • Continuity and insulation testing in accordance with IEC 61557.
  • Calculation of PI and DAR factors.
  • Frequency filters.
  • Non-contact electric field detection.
  • Compensation of test leads.
  • Data hold and MIN/MAX/AVG recording.
  • Communication with a PC.
  • Measurement of conductance.
  • Measurement of duty cycle.
  • TRMS measurements.
  • Large 500,000 counts display.
  • Voltage measuring range: 0,003 V – 1000 V (AC and DC).
  • Accuracy of voltage measurements: 0,02 %.
  • Current measuring range: 0,00025 A – 10 A, 20 A for 30 s, (AC and DC).
  • Accuracy of current measurements: 0,15 %.
  • Resistance measurements in the 1 Ω to 50 MΩ range.
  • Diode testing.
  • Capacitance measurement.
  • Frequency measurement.
  • Temperature measurements up to 1000 °C.

Applications

  • Generator safety.
  • Earth continuity and insulation testing.
  • Voltage measurements.
  • Current measurements.
  • Frequency measurements.
  • Appliances troubleshooting.
  • Installation troubleshooting.
  • Field service.
  • Electronics.
  • HVAC.
  • Home maintenance.
  • Industrial testing.
  • Hobby work.
