This guide explores the functions and applications of thermocouples, a sensor celebrated for its simplicity, ruggedness, and versatility. We will delve into what it is, how its scientific principle works, and why it remains an indispensable tool across nearly every industry imaginable.

Simple Definition: What is a Thermocouple?

At its core, a thermocouple is a sensor that measures temperature by converting thermal energy into a small, measurable electrical voltage. Think of it as a simple heat-to-voltage converter. This straightforward function is what makes it so brilliant and widely adopted.

Unlike more complex sensors, a thermocouple possesses several key characteristics that make it a standout choice for a vast range of applications:

• Self-Powered: It generates its own voltage and requires no external power source to function, making it incredibly reliable.
• Durable: Often constructed with robust metal sheaths, thermocouples can withstand harsh conditions, including high vibration, pressure, and corrosive environments.
• Wide Temperature Range: Depending on the materials used, different types of thermocouples can measure temperatures from the deep cryogenics of -200°C (-328°F) to the blistering heat of molten metal above 2300°C (4200°F).
• Cost-Effective: Compared to other high-temperature sensors, thermocouples are generally inexpensive, allowing for their widespread use.

How Does a Thermocouple Work? The Science Behind the Sensor

The operation of a thermocouple is based on a remarkable scientific principle discovered nearly 200 years ago. While the physics can be complex, the core concept is wonderfully elegant and can be understood through two key ideas.

The Seebeck Effect Explained

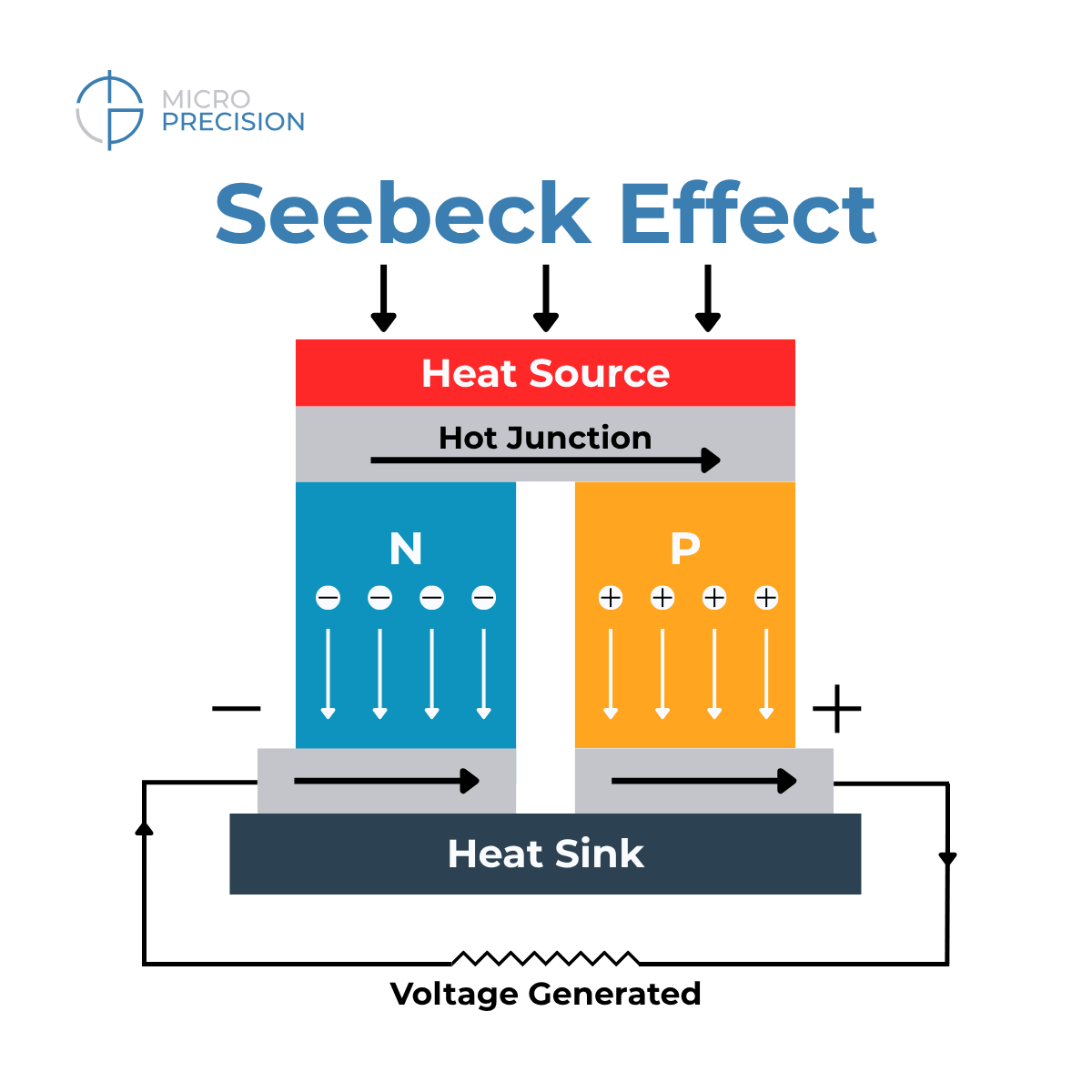

In 1821, physicist Thomas Seebeck discovered that when two different conductive metals are joined together at one end and that junction is heated, a small, predictable voltage is produced across the free ends of the wires. This phenomenon was named the Seebeck effect. The best analogy is to think of a thermocouple as a tiny, heat-powered battery. The amount of voltage it produces is not random; it changes in a known and repeatable way as the temperature changes. By measuring this tiny voltage (often just a few millivolts), we can accurately determine the temperature at the junction where the two metals are joined.

The Critical Role of the Reference (Cold) Junction

Here is a crucial detail: the voltage produced by the Seebeck effect corresponds to the temperature difference between the measuring junction (the “hot” end) and the opposite end where the wires connect to a meter (the “cold” or “reference” junction).

In the early days of thermometry, this meant the reference junction had to be kept at a known, stable temperature—often an ice bath at 0°C—to get an accurate absolute reading. This was, of course, highly impractical for industrial use.

Modern digital instruments solve this with a clever process called Cold Junction Compensation (CJC). The instrument uses a separate, built-in sensor (like a thermistor) to measure the ambient temperature right at its connection terminals. It then mathematically adds this reference temperature to the temperature difference calculated from the thermocouple’s voltage. This process happens automatically and instantly, providing a precise and absolute temperature reading without the need for an ice bath.

The Anatomy of a Thermocouple: Its Key Parts & Appearance

So, what does a thermocouple actually look like? Most commonly, it appears as a thin metal probe or rod, which can range from a few inches to several feet long, attached to a flexible cable that ends in a plastic connector. The probe itself can be rigid or bendable, tailored to the needs of the application.

Let’s break down its essential components:

1. The Thermoelements

These are the two dissimilar metal wires that form the core of the sensor. The specific combination of metals (e.g., Chromel and Alumel for the popular Type K) determines the thermocouple’s measurement range, cost, and chemical resistance.

2. The Measuring Junction (“Hot Junction”)

This is the tip of the thermocouple where the two thermoelements are physically joined, usually by welding. The construction of this junction is critical as it affects the sensor’s response time and durability. There are three main styles:

• Exposed: The wires are joined and left directly exposed to the environment. This provides the fastest possible response to temperature changes but leaves the junction vulnerable to corrosion and mechanical damage.
• Grounded: The wires are joined and welded to the inside of the protective outer sheath. This offers a fast response time while providing good protection for the junction.
• Ungrounded: The wires are joined but remain electrically isolated from the protective sheath. This design has the slowest response time but is essential in environments with high electrical noise (EMI), as it prevents interference from affecting the reading.

3. The Protective Sheath

This is the outer tube that encases the thermocouple wires, protecting them from the environment. It is commonly made from materials like stainless steel for general use or more exotic alloys like Inconel for high-temperature or corrosive applications.

4. The Connector

The cable terminates in a plug that connects to the measuring instrument. These connectors are standardized and color-coded according to the thermocouple type to prevent mismatches, which would lead to inaccurate readings. For example, a Type K connector is universally yellow.

Choosing the Right Thermocouple

There is no “one-size-fits-all” thermocouple. The specific pairing of metals—known as the “type”—is chosen based on the temperature range, chemical environment, and required accuracy of the application. Choosing the right thermocouple type is critical for ensuring both accuracy and a long service life.

Imagine you are tasked with monitoring a ceramics kiln that operates at 1200°C. A common Type J thermocouple, made of Iron and Constantan, has a maximum range of about 750°C; using it here would lead to rapid failure and incorrect data. The correct choice would be a Type K (Chromel-Alumel) or, for even higher stability, a Type S (Platinum-Rhodium), both of which are designed for such high temperatures.

Conversely, if you needed to monitor a laboratory freezer holding biological samples at -80°C, the stability and accuracy of a Type T (Copper-Constantan) thermocouple at cryogenic temperatures would make it the ideal choice. The most common “base metal” thermocouples are Types K, J, T, E, and N, while “noble metal” types like S, R, and B are reserved for the most extreme high-temperature applications.

Where and What Devices Use Thermocouples?

Driven by automation and industrial growth, the global thermocouple market was valued at over $1.5 billion in 2023 and is projected to continue its expansion. A 2024 report from Global Instrumentation Insights highlights the automotive and metal processing industries as key drivers of this demand. This growth underscores the thermocouple’s enduring relevance in a technologically advancing world.

Industrial Sector

• Metal & Glass Production: Inside furnaces, kilns, and smelters, thermocouples are often the only sensors that can survive the extreme heat required for these processes.
• Generation: They monitor the exhaust gas temperature of turbines, a critical parameter for both efficiency and safety, because they can withstand the intense heat and vibration.
• Oil & Gas: In chemical reactors and pipelines, specially sheathed thermocouples provide reliable readings while resisting corrosion from harsh chemicals.

Commercial & Consumer Devices

• Appliances: In many gas-powered furnaces, water heaters, and ovens, a thermocouple performs a vital safety role. It detects the pilot light’s flame; if the flame goes out, the thermocouple cools, and the voltage drop signals a safety valve to shut off the gas supply, preventing dangerous leaks.
• Automotive: Mechanics use thermocouples for engine diagnostics, and they are integrated into vehicles as exhaust gas temperature (EGT) sensors to monitor engine performance and emissions.

Science and Aerospace

• Laboratory Experiments: Their responsiveness and small size make thermocouples ideal for monitoring precise temperature changes in scientific research.
• Aerospace: From testing the heat shields on spacecraft to monitoring the combustion temperature in rocket engines, thermocouples provide critical data in the most demanding environments imaginable.

Thermocouple Calibration: The Key to Reliable Data

A thermocouple is an incredibly reliable device, but like any precision instrument, its accuracy can diminish over time. This phenomenon, known as sensor drift, occurs due to the gradual chemical changes and degradation the metal wires experience when exposed to high temperatures, thermal cycling, and chemical contaminants.

This is why calibration is not just recommended; it is essential for any application where temperature accuracy is important. An uncalibrated thermocouple can lead to poor product quality, inefficient processes, and even significant safety hazards.

The Calibration Process

The most common method for calibrating a thermocouple is through comparison. The process involves placing the thermocouple being tested into a stable, uniform temperature source, such as a dry-block calibrator or a specialized furnace. Alongside it, a highly accurate reference probe, whose own calibration is traceable to a national standard, measures the exact temperature.

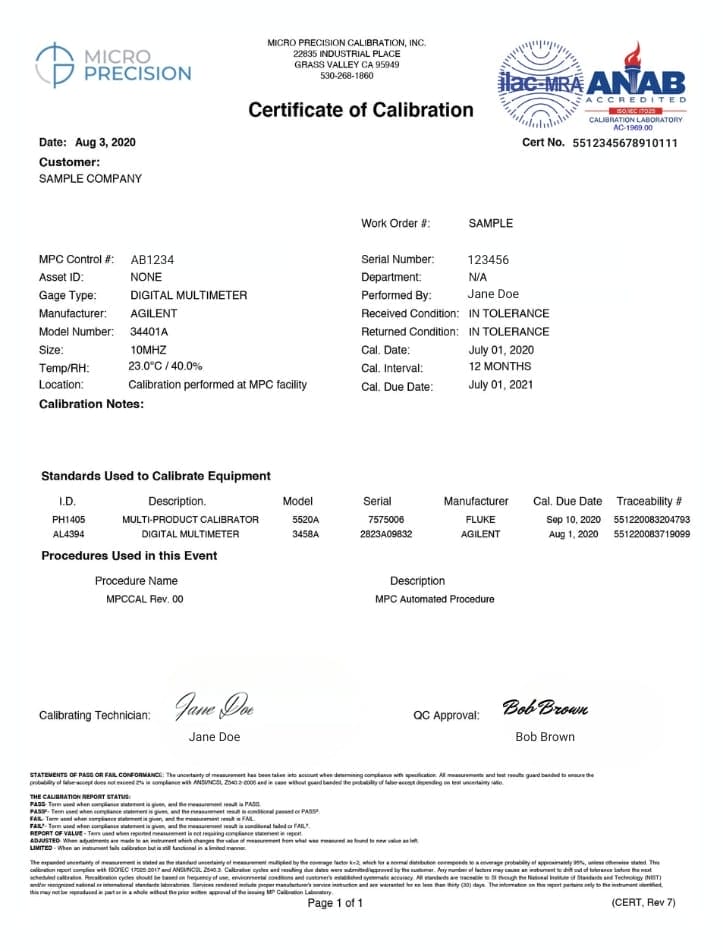

The readings (voltage output) from the test thermocouple are then compared to the true temperature provided by the reference probe at several points across its operating range. The deviation, or error, is recorded on a calibration certificate. This certificate is a vital document, providing the correction values needed to ensure the thermocouple’s readings are accurate and serving as proof of its measurement integrity. Entrusting this process to an expert calibration service is crucial, as the value of the calibration is directly tied to the skill of the technician and the quality of the reference standards used.

Thermocouple Maintenance & Troubleshooting

Proper maintenance is not merely about reactive fixes; it’s a proactive strategy to extend the life and reliability of a thermocouple significantly. Fortunately, implementing effective maintenance protocols, including timely repairs and regular calibration, can be straightforward and highly effective.

Maintenance Best Practices

• Regular Inspections: Visually check the probe’s sheath for any signs of corrosion, brittleness, or physical damage. Even minor wear can compromise performance and lead to sensor failure.
• Connection Integrity: Always ensure that the connector is clean, dry, and securely fits into its socket. Loose or dirty connections are a frequent culprit behind erratic or inaccurate readings.
• Correct Extension Wire Usage: Should there be a need to extend the thermocouple’s reach, it is absolutely critical to use an extension wire made of the exact same specific thermocouple materials as the sensor itself. Substituting with ordinary copper wire will inevitably create unintended new junctions, introducing significant and erroneous temperature readings.
• Scheduled Calibration: Beyond visual checks, regular calibration is a cornerstone of effective thermocouple maintenance. Over time, even the most robust thermocouples can experience sensor drift due to thermal cycling and environmental exposure. Scheduled calibration by experts ensures that your readings remain accurate and reliable, preventing costly errors or safety incidents.
• Timely Repair: When issues are detected, prompt and professional repair is essential. Addressing minor damage or connection problems quickly can often prevent more extensive and costly failures down the line. This might involve replacing a damaged sheath or re-terminating a faulty connection.

Common Problems & Solutions

Despite best practices, issues can arise. Here are some frequent thermocouple problems and their effective solutions:

• Open Circuit/No Reading: This is a clear indication of a break in the internal wiring or a completely severed connection. It usually means the circuit is incomplete.
  • Solution: Inspect the entire length of the cable and connections for physical damage. Test continuity with a multimeter. If the probe itself is damaged, replacement is typically required.
• Inaccurate Readings: If the thermocouple consistently reads a temperature that deviates from the actual value, several factors could be at play. These include long-term sensor drift (addressed by calibration), chemical contamination affecting the wire’s properties, or an incorrect connection where the positive and negative leads are reversed.
  • Solution: The primary solution for drift is professional calibration. For contamination, replacement might be necessary. Always double-check polarity upon installation.
• Erratic Readings: Wildly fluctuating or unstable temperature readings often point to electrical noise (Electromagnetic Interference – EMI) from nearby machinery like motors, or an intermittent, poor connection.
  • Solution: To mitigate EMI, consider using an ungrounded junction thermocouple, which offers better electrical isolation. Ensure all wiring is properly shielded and routed away from sources of electrical interference. Re-secure all connections.

According to a technical guide on temperature measurement by Omega Engineering, a global leader in the field, a majority of thermocouple issues in industrial plants are not due to sensor defects but are instead caused by improper installation and misapplication of the extension wire. Simple mistakes during setup are often the primary source of erroneous readings.

Thermocouple Safety Hazards: A Priority Checklist

While thermocouples are inherently safe, low-voltage devices, the environments in which they operate demand a strong focus on safety.

Electrical Hazards

Thermocouples are often connected to mains-powered control systems. Before performing any maintenance, always follow proper lockout/tagout procedures to de-energize the entire system. An ungrounded junction thermocouple is the safest design choice to prevent the probe from becoming energized and creating an accidental electrical path.

Physical Hazards

• Burn Risk: Thermocouple probes can be extremely hot (or cryogenically cold). Always wear the appropriate Personal Protective Equipment (PPE), such as heat-resistant gloves, before handling them.
• Pressurized Environments: If a thermocouple is used in a pressurized vessel, ensure its pressure rating is sufficient for the application to prevent a dangerous mechanical failure.

Process Hazards

Ultimately, the biggest risk is an inaccurate sensor. A failed or inaccurate thermocouple can lead to a loss of process control. This could result in ruined products, damaged equipment, or, in the worst-case scenario, a catastrophic failure in a temperature-critical process. This is another reason why routine calibration is a cornerstone of industrial safety.

Conclusion & Future Outlook

The thermocouple has proven to be an enduring and indispensable tool. Its elegant combination of a wide temperature range, robust construction, and cost-effectiveness has secured its place in everything from home appliances to space exploration. It stands as a testament to the power of a simple scientific principle applied with brilliant engineering.

Looking ahead, the future of the thermocouple remains bright. Ongoing research into new metal alloys and the development of micro-scale, thin-film thermocouple technology promise to push the boundaries of temperature measurement even further, enabling new discoveries and more efficient technologies.

To harness the full potential of these remarkable sensors, however, the final, non-negotiable step is ensuring their accuracy. The data they provide is only as reliable as their last calibration. This is where services from experts like Micro Precision Calibration become indispensable. By providing traceable, high-quality calibration, they ensure that every measurement is not just a number, but a trustworthy piece of data that can be used to innovate, improve quality, and operate safely.
