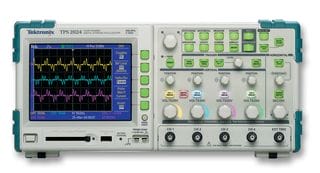

Tektronix Tps2014 100Mhz 4Ch 2Gsa/S, Digital Storage Oscilloscope
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
| Service & Purchase | Price |
|---|---|
| Equipment repair to manufacturers specifications. | Inquire for pricing |
| Standard calibration to manufacturers specifications. | Inquire for pricing |
| Calibration including pre and post calibration data. | Inquire for pricing |
| Calibration with 17025 accreditation. | Inquire for pricing |
Description
The Tektronix TPS2014 is a high-performance digital storage oscilloscope that offers a range of advanced features and capabilities. With a bandwidth of 100MHz and four channels, it allows for accurate and precise measurements of electrical signals. The 2Gsa/S (gigasamples per second) sampling rate ensures fast and reliable capture of waveforms. Its digital storage capability allows for the storage and retrieval of waveforms and data, enabling users to analyze and compare multiple signals simultaneously. With its user-friendly interface and intuitive controls, the TPS2014 is suitable for a wide range of applications, including electronics design, research and development, and troubleshooting. Overall, the Tektronix TPS2014 is a reliable and efficient tool for professionals working with electrical signals.
Specifications
– Bandwidth: 100 MHz
– Channels: 4
– Sample Rate: 2 Gsa/s
– Vertical Resolution: 8 bits
– Record Length: 10 kpts per channel
– Rise Time: ≤ 3.5 ns
– Input Impedance: 1 MΩ ± 2% || 16 pF ± 3 pF
– Maximum Input Voltage: 400 V (DC + AC peak)
– Time Base Range: 2 ns/div – 1000 s/div
– Input Coupling: DC, AC, GND
– Trigger Types: Edge, Pulse Width, Video, Runt, Pattern, State, Duration, Setup/Hold, Window, Dropout, Qualified, Interval, Alternate, Delayed
– Trigger Modes: Auto, Normal, Single
– Display: 7-inch color TFT LCD
– Connectivity: USB host, USB device, LAN
– Power Supply: 100-240 V AC, 45-440 Hz, CAT II
