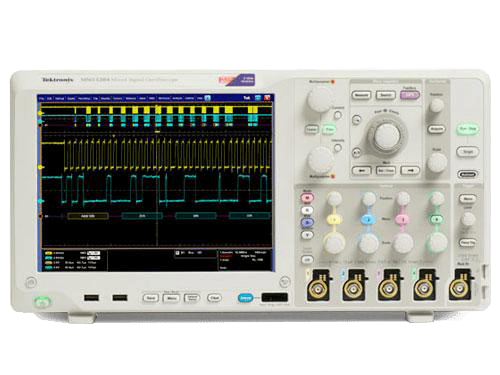

Tektronix MSO5054B Oscilloscopes
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
| Service & Purchase | Price |
|---|
Description
The Tektronix MSO5054B Oscilloscope is a high-performance instrument designed for advanced waveform analysis and troubleshooting applications. With its exceptional signal fidelity, 500 MHz bandwidth, and 5 GS/s sample rate, it offers precise and accurate measurements for a wide range of signals. The MSO5054B features a large 10.4-inch display that provides a clear and detailed view of waveforms, making it easy to identify and analyze complex signal patterns. It also offers a deep memory of up to 12.5 million points per channel, enabling users to capture and analyze long-duration waveforms. Additionally, this oscilloscope includes advanced triggering capabilities, such as pulse width triggering and runt triggering, allowing users to efficiently isolate and capture specific events. With its comprehensive set of features and robust performance, the Tektronix MSO5054B Oscilloscope is an excellent tool for engineers and technicians working in various industries, including electronics, telecommunications, and automotive.
Specifications
– Model: MSO5054B
– Bandwidth: 500 MHz
– Channels: 4 analog + 16 digital
– Sample Rate: 2.5 GS/s
– Record Length: 20 Mpts
– Vertical Resolution: 8 bits
– Display: 10.4-inch color TFT LCD
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup/Hold, Rise/Fall Time
– Waveform Capture Rate: 50,000 wfms/s
– Serial Bus Protocol Analysis: I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, MIL-STD-1553
– Math Functions: Add, Subtract, Multiply, Divide, FFT, Square Root
– Connectivity: USB, LAN, GPIB (optional)
– Dimensions: 446 mm x 233 mm x 150 mm
– Weight: 7.7 kg
– Power Consumption: 100-240 VAC, 45-66 Hz, 400 W max.
Tektronix MSO5054B is also available with the following specs and model:
- Oscilloscope Mixed Signal Digital 500 MHz 5 GS/s Aanalog Chs 4 / Dig Chs 16
