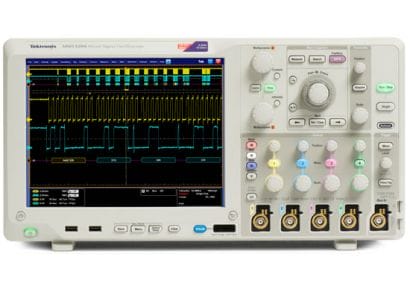

Tektronix Mso5054 Mixed Signal Oscilloscope; Digital Phosphor, 500Mhz, 5Gs/S,
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
| Service & Purchase | Price |
|---|---|
| Equipment repair to manufacturers specifications. | Inquire for pricing |
| Standard calibration to manufacturers specifications. | Inquire for pricing |
| Calibration including pre and post calibration data. | Inquire for pricing |
| Calibration with 17025 accreditation. | Inquire for pricing |
Description
The Tektronix Mso5054 Mixed Signal Oscilloscope is a powerful and advanced device designed for engineers and technicians working in various industries. With its digital phosphor technology, it provides clear and detailed waveforms, making it easier to analyze and troubleshoot electrical signals. The oscilloscope has a bandwidth of 500MHz and a sampling rate of 5Gs/s, ensuring accurate and reliable measurements. Its mixed signal capability allows users to simultaneously view and analyze both analog and digital signals, saving time and effort. With its user-friendly interface and a wide range of features, the Tektronix Mso5054 is a valuable tool for those involved in electronics testing and design.
Specifications
– Model: Tektronix Mso5054
– Type: Mixed Signal Oscilloscope
– Features: Digital Phosphor
– Bandwidth: 500 MHz
– Sample Rate: 5 GS/s (Gigasamples per second)
– Channels: 4 analog and 16 digital
– Display: Color LCD with high resolution
– Memory: 62.5 Mpoints (Mega points)
– Vertical Resolution: 8 bits
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Setup/Hold, Window, Transition, Pattern, and Video
– Measurement Parameters: Voltage, Time, Frequency, Period, Rise/Fall Time, Duty Cycle, Pulse Width, and more
– Connectivity: USB, LAN, GPIB, and VGA
– Software Compatibility: OpenChoice and NI LabVIEW
– Power Supply: 100-240 V AC, 50/60 Hz
– Dimensions: 17.7 x 11.4 x 6.6 inches
– Weight: 16.8 lbs.
Tektronix Mso5054 is also available with the following specs and model:
- Oscilloscope Mixed Signal Digital 500 MHz 5 GS/s Aanalog Chs 4 / Dig Chs 16
