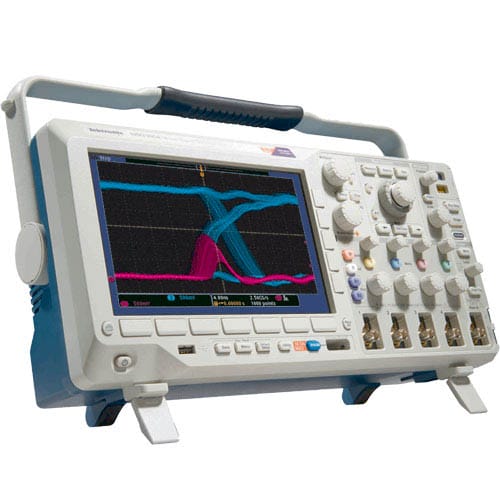

Tektronix Mso3014 Mixed Signal Oscilloscope; Digital Phosphor, 100 Mhz, 2.5 Gs
Please use the request form to start a calibration services quote. You may also request equipment sales or repair services.
| Service & Purchase | Price |
|---|---|
| Equipment repair to manufacturers specifications. | Inquire for pricing |
| Standard calibration to manufacturers specifications. | Inquire for pricing |
| Calibration including pre and post calibration data. | Inquire for pricing |
| Calibration with 17025 accreditation. | Inquire for pricing |
Description
The Tektronix MSO3014 Mixed Signal Oscilloscope is a powerful and versatile tool for electronic engineers and technicians. With its digital phosphor technology, it provides a clear and detailed display of waveforms, enabling users to easily analyze and troubleshoot complex electronic signals. With a bandwidth of 100 MHz and a sample rate of 2.5 GS/s, it ensures accurate and precise measurements. The MSO3014 also features a mixed signal capability, allowing users to simultaneously capture and analyze both analog and digital signals. Its intuitive interface and advanced triggering options make it a user-friendly and efficient tool for a wide range of applications, from circuit debugging to testing communication protocols. Overall, the Tektronix MSO3014 Mixed Signal Oscilloscope is a reliable and high-performance instrument that meets the demands of modern electronic testing and measurement.
Specifications
– Model: Tektronix MSO3014
– Type: Mixed Signal Oscilloscope
– Technology: Digital Phosphor
– Bandwidth: 100 MHz
– Sample Rate: 2.5 Gs/s (Giga-samples per second)
– Channels: 4 analog channels
– Record Length: 10 Mpoints per channel
– Vertical Resolution: 8 bits
– Display: 8.5-inch color TFT-LCD display
– Trigger Types: Edge, Pulse Width, Runt, Timeout, Logic, Setup/Hold, Rise/Fall Time, Video, Pattern, Delay, and others
– Input Impedance: 1 MΩ // 15 pF
– Input Voltage Range: 1 mV/div to 10 V/div
– Connectivity: USB host and device ports, LAN (Ethernet) port, GPIB (IEEE-488) port (optional)
– Supported Probes: TekVPI probe interface (compatible with a wide range of active and passive probes)
– Math Functions: Add, Subtract, Multiply, and Divide
– Serial Bus Decoding: I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, I2S, MIL-STD-1553B, and others (optional)
– Power Supply: 100-240 VAC, 50/60 Hz
– Dimensions: 11.7 in x 5.3 in x 15.7 in (297 mm x 135 mm x 400 mm)
– Weight: 13.6 lbs (6.2 kg)
Tektronix Mso3014 is also available with the following specs and model:
- Oscilloscope Mixed Signal 100 MHz 2.5 GS/s Analog Chs 4 / Dig Chs 16
